UL-EMP Series

Model:EMP-08170DI-YY-L/R

Features :

  UL LISTED FOR US & CANADA Listed to UL924 and tested to CSA 22.2 No. 141 Field or Factory Installation

  Self-test function

  Triple protection

  Malfunction indication

  Constant Output Power

  Input: 100-347Vac, Output: 170Vdc

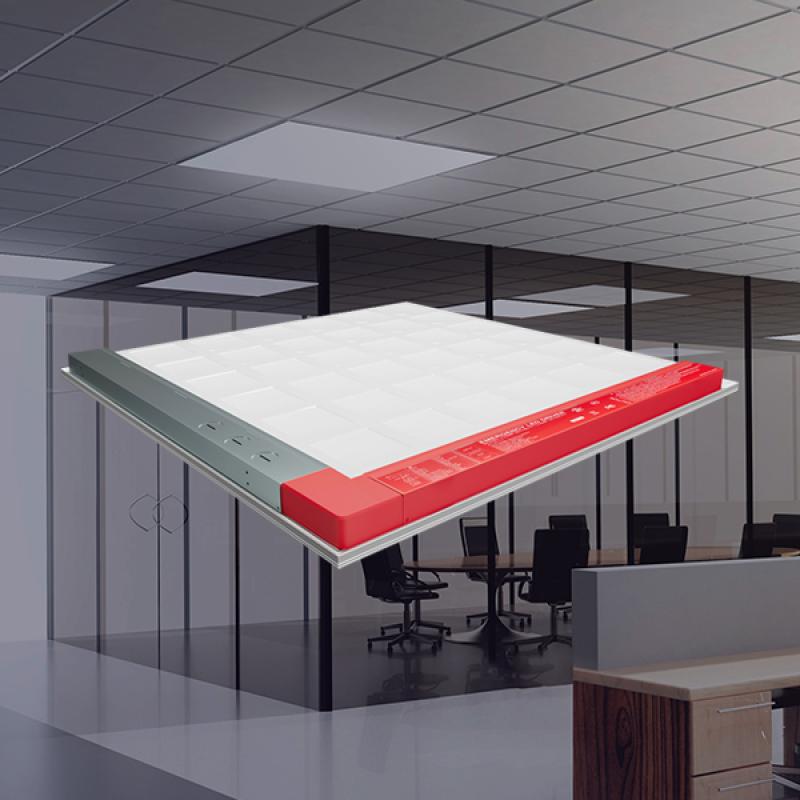

  Design for backlit panel lighting, including 2 * 1, 2 * 2, 2 * 4 panel lights.

Product Description
Input Voltage
AC100-347V
AC100-347V
AC100-347V
AC100-347V
Ouput Voltage
DC170V
DC170V
DC170V
DC170V
Output Power
8W
8W
15W
15W
Recharge Time
≥24 Hours
≥24 Hours
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
0℃~ 50℃
0℃~ 50℃

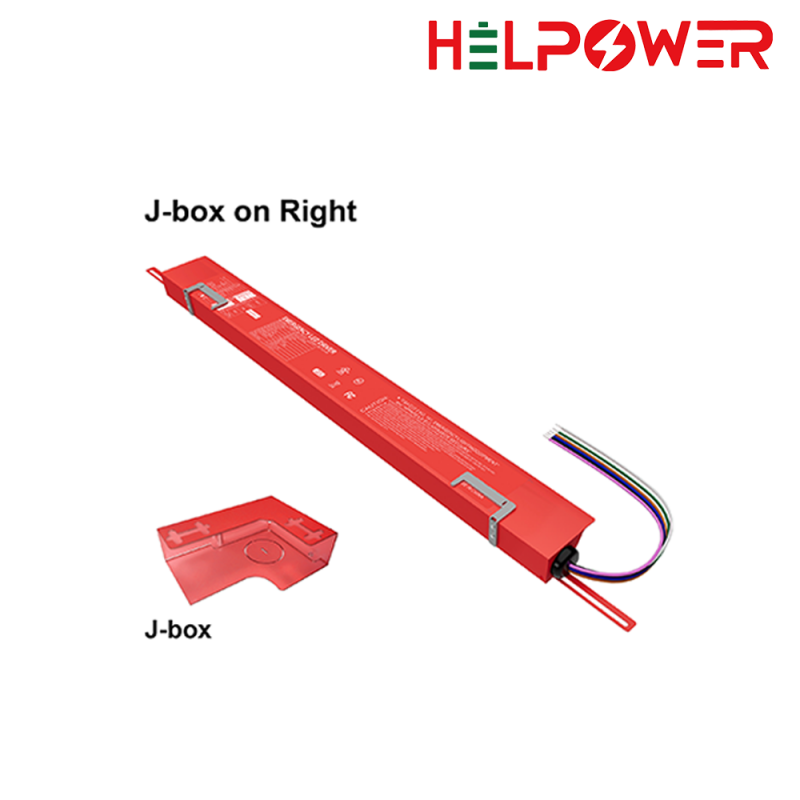

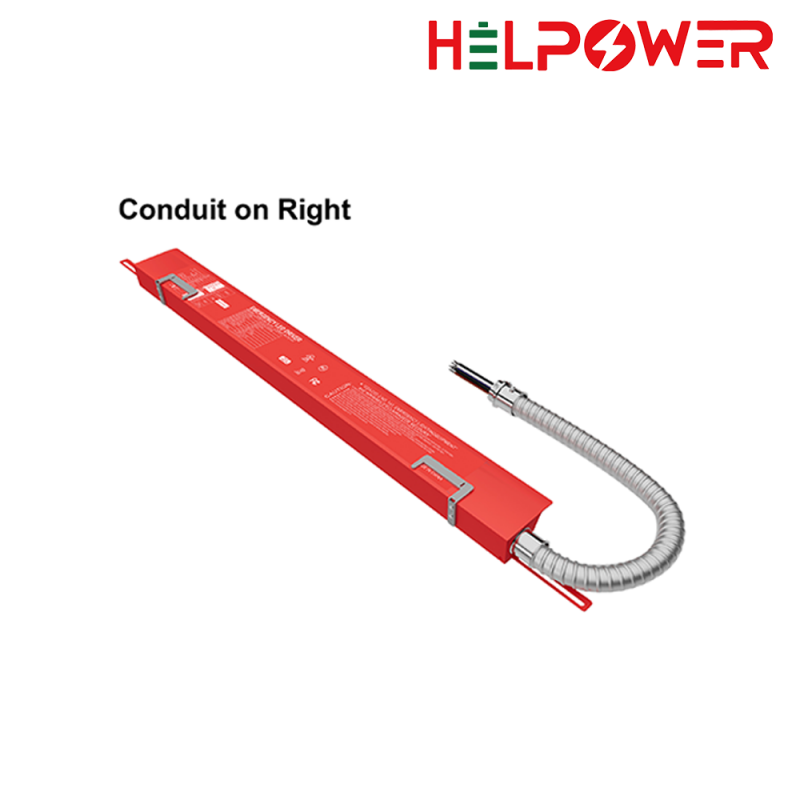

Note: According to the different led driver positions, it is divided into L model/R model. L: Left; R: Right.
