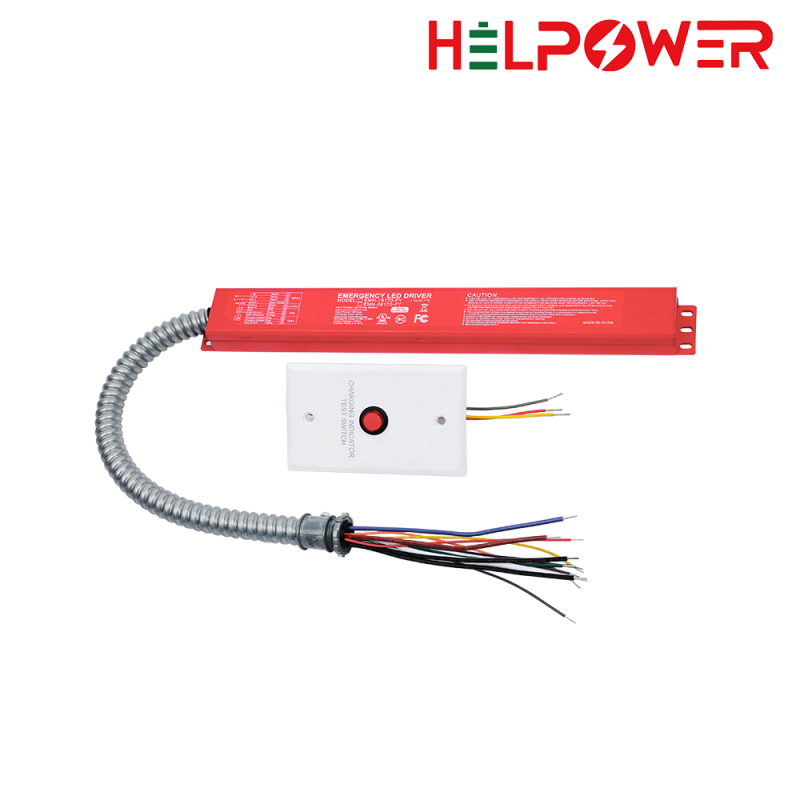

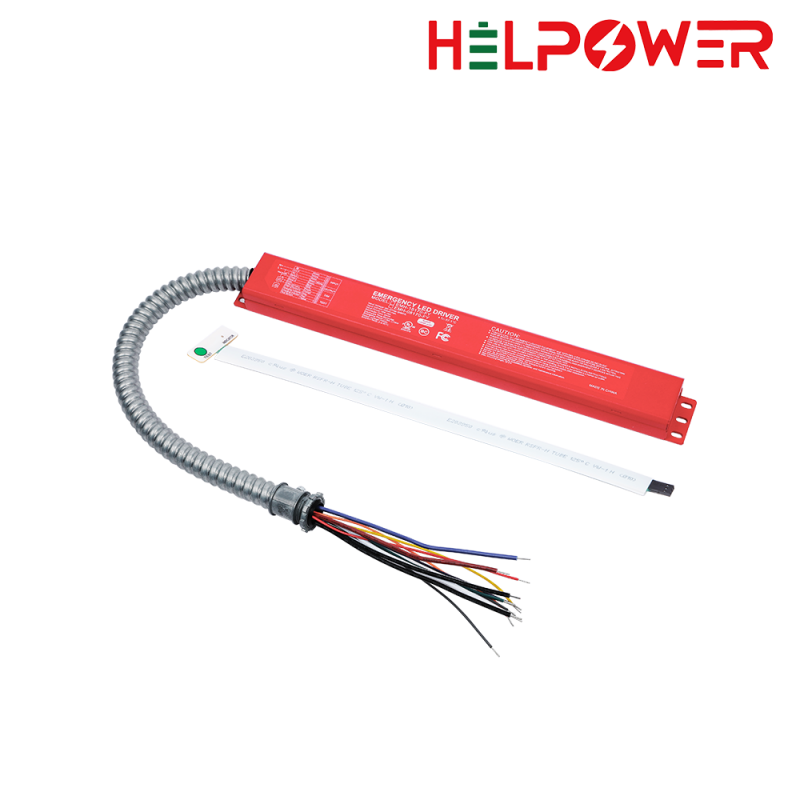

UL-EMH Series

Model:EMHXX170-HY

Features :

  UL LISTED FOR US & CANADA Listed to UL924 and tested to CSA 22.2 No. 141 Field or Factory Installation

  Self-test function

  Triple protection

  Malfunction indication

  Constant Output Power

  Input: 100-347Vac, Output: 170Vdc

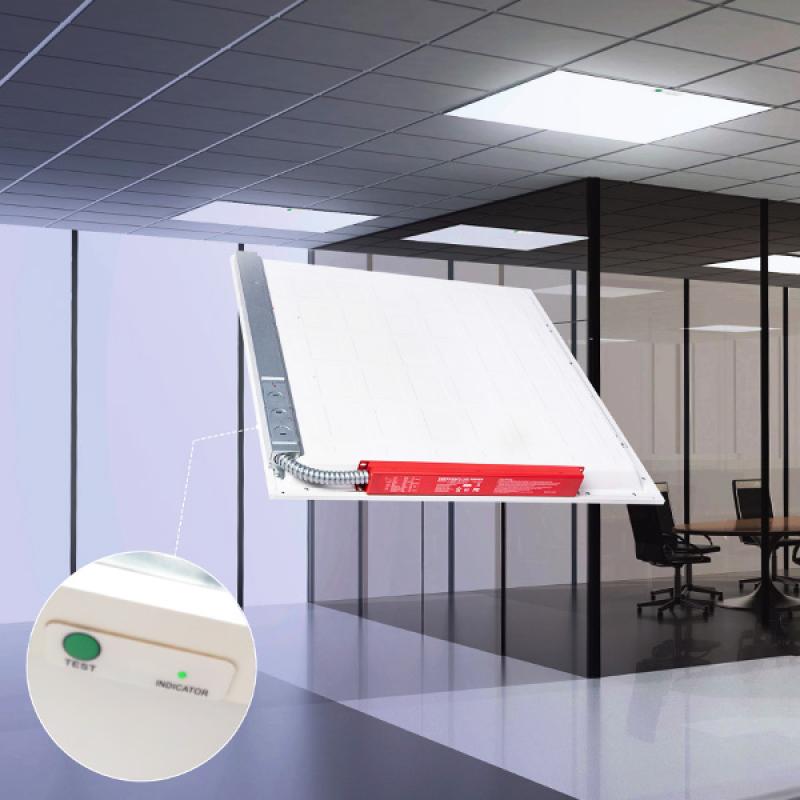

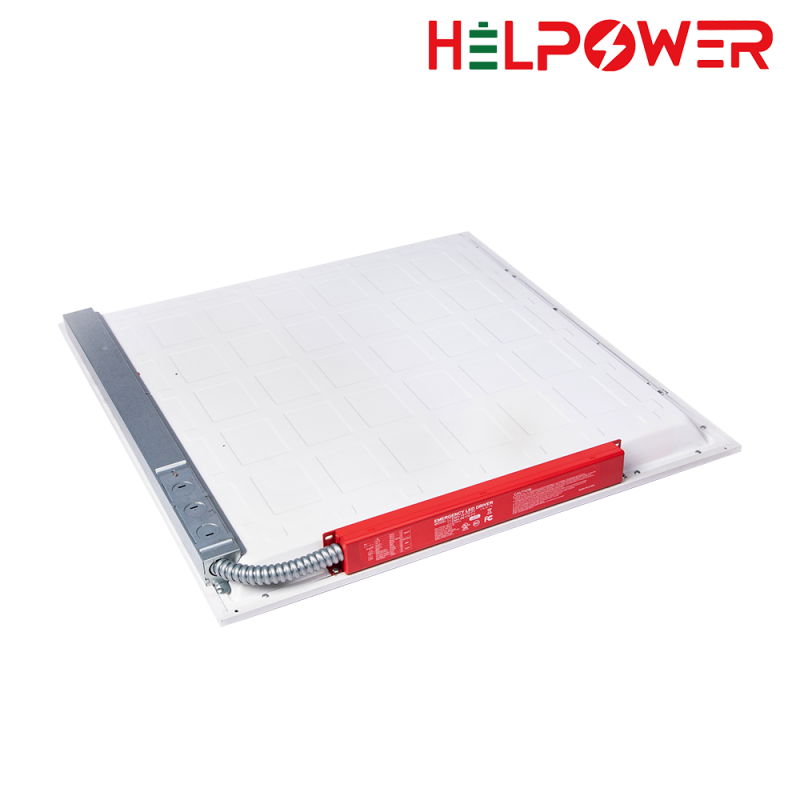

  Suitable for LED products with drivers installing externally, such as led panel, led troffer, led back-lit panel, etc.

Product Description
Model Number
Input Voltage
AC100-347V
AC100-347V
Ouput Voltage
DC170V
DC170V
Output Power
8W
18W
Recharge Time
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
Note: "HY" =sales code
