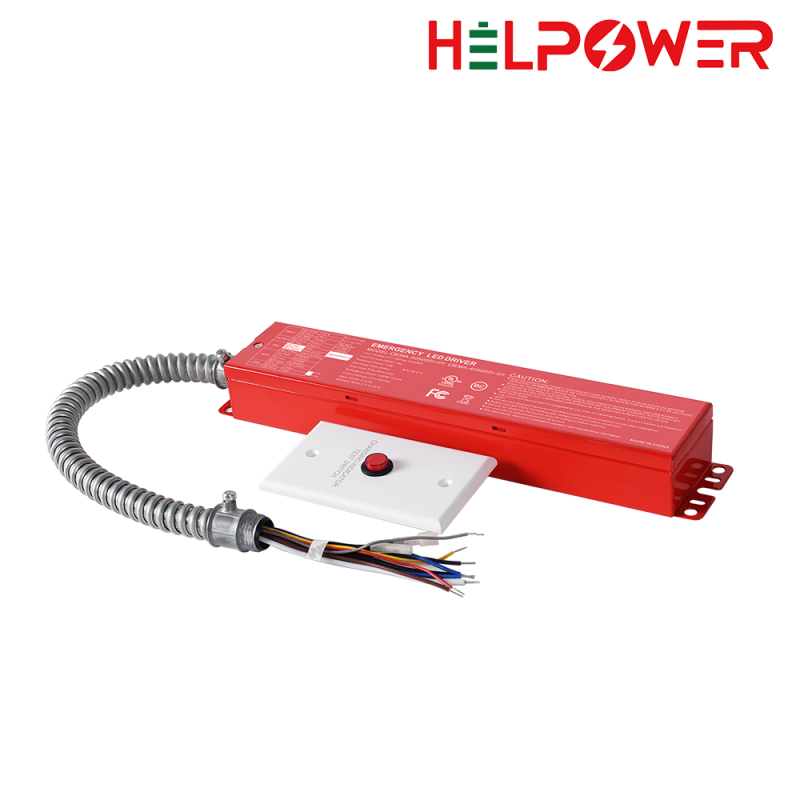

UL-EMAAAWW Series

Model:EMAXXAAAWW-YY

Features :

  UL LISTED FOR US & CANADA Listed to UL924 and tested to CSA 22.2 No. 141 Field or Factory Installation

  Self-test function

  Triple protection

  Constant Output Power

  Malfunction indication

  For wiring to the led driver's AC input

  Input Voltage: 277-480 Vac, Output Voltage: 310-500 Vdc

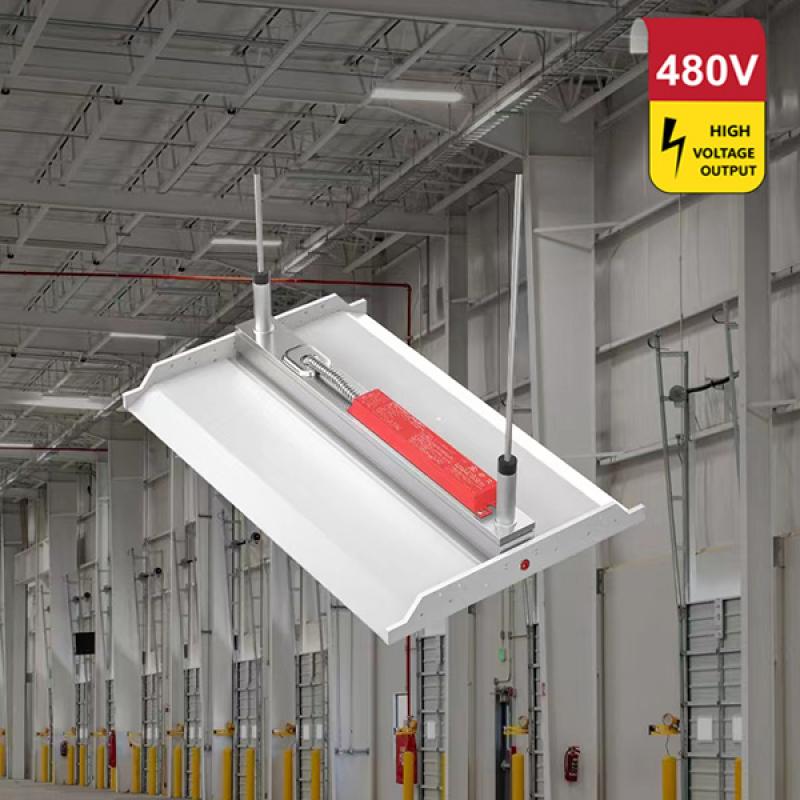

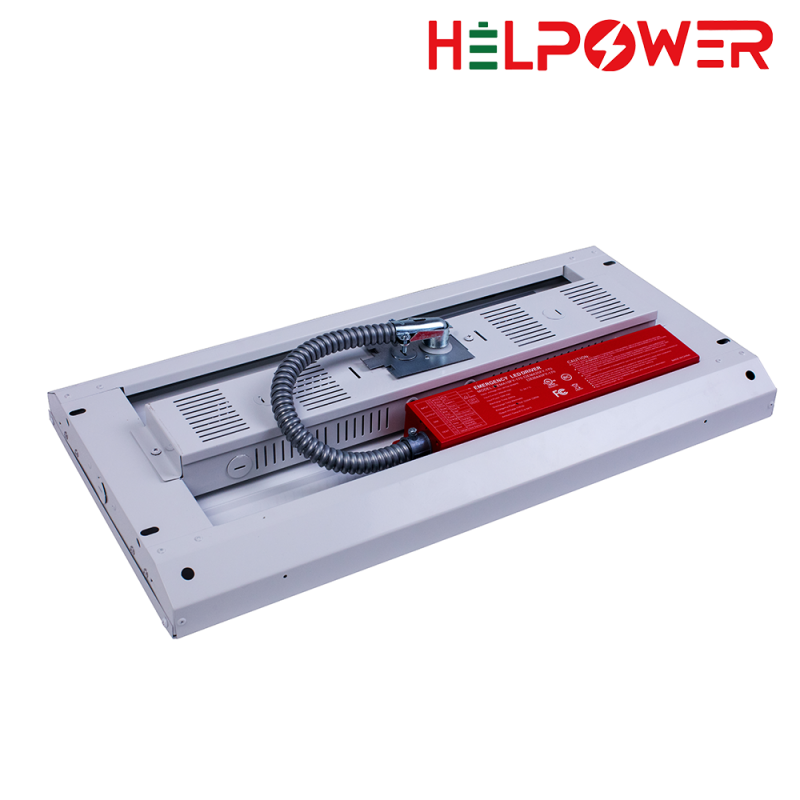

  Suitable for LED products with drivers installing externally, such as linear high bay light, led troffer, led down light, etc.

Product Description
Input Voltage
AC277-480V
AC277-480V
Ouput Voltage
DC310-500V
DC310-500V
Output Power
20W
40W
Recharge Time
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
Note: "hY" =sales code ; "AAA"= output voltage
