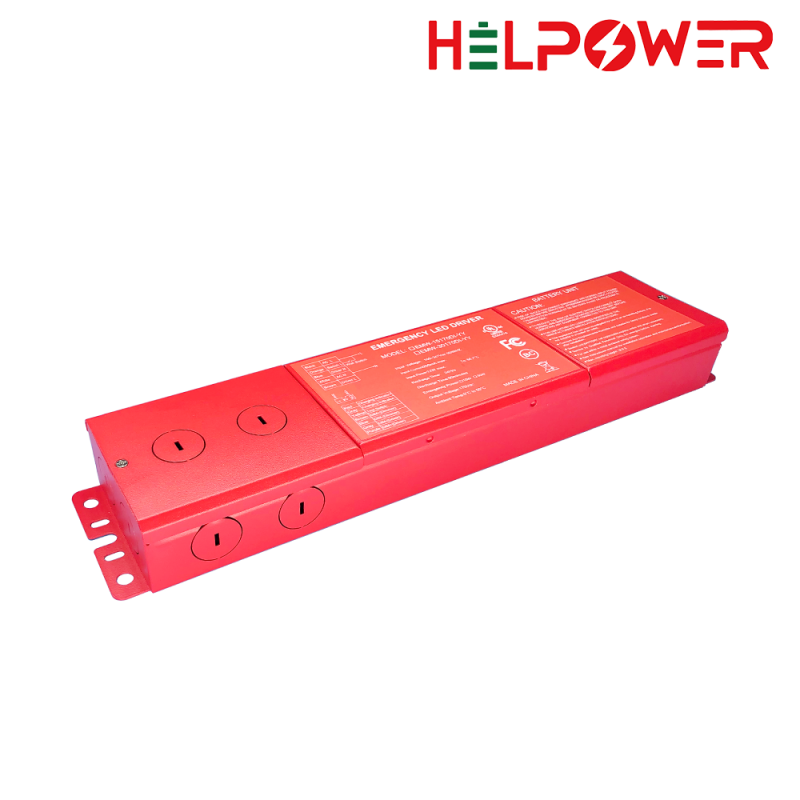

UL-EMW-XXDI Series

Model:EMWXX170DI-YY

Features :

  UL LISTED FOR US & CANADA Listed to UL924 and tested to CSA 22.2 No. 141 Field or Factory Installation

  Self-test function

  Triple protection

  Malfunction indication

  Constant Output Power

  For wiring to the led driver's AC input

  Input Voltage: 100-347Vac, Output Voltage: 170Vdc

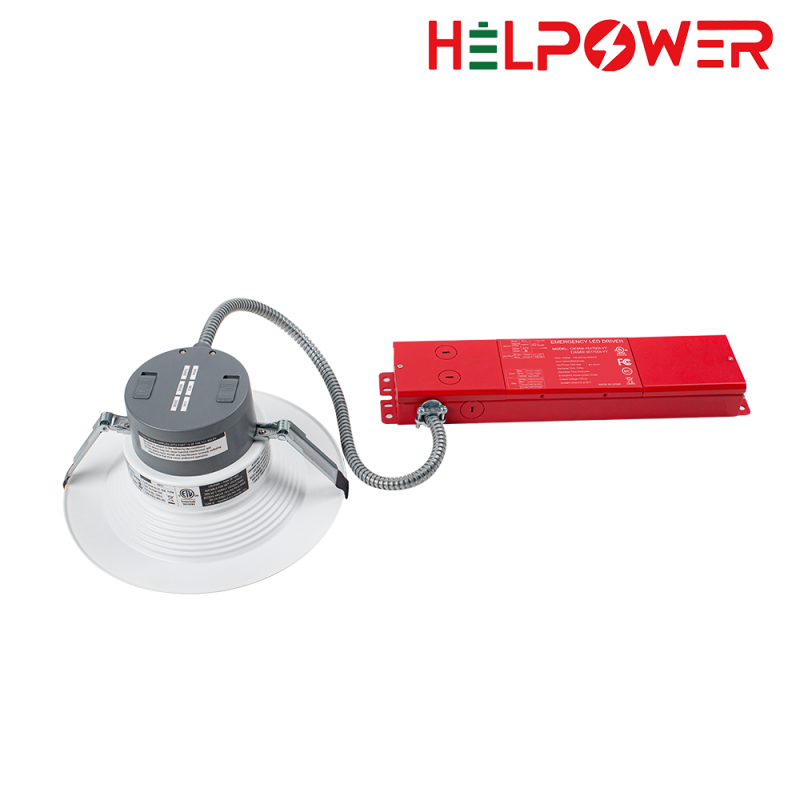

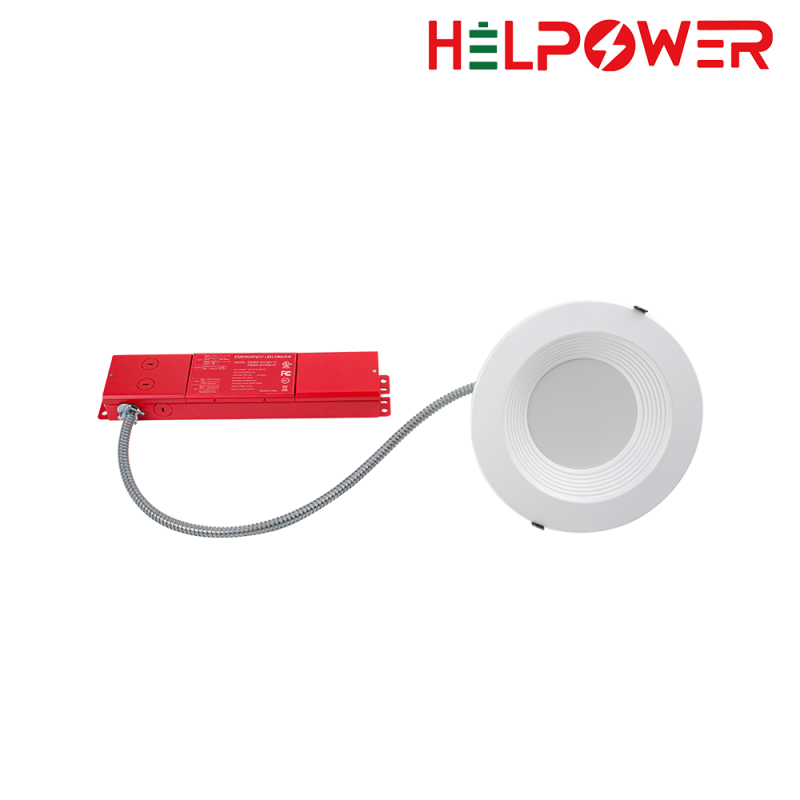

  Suitable for LED products with drivers installing externally, such as led down light.

Product Description
Input Voltage
AC100-347V
AC100-347V
Ouput Voltage
DC170V
DC170V
Output Power
25W
40W
Recharge Time
≥24 Hours
≥24 Hours
Illumination Time
≥ 90Mins
≥ 90Mins
Battery
Li-ion
Li-ion
Ambient Temp
0℃~ 50℃
0℃~ 50℃
Note: "YY" =sales code
